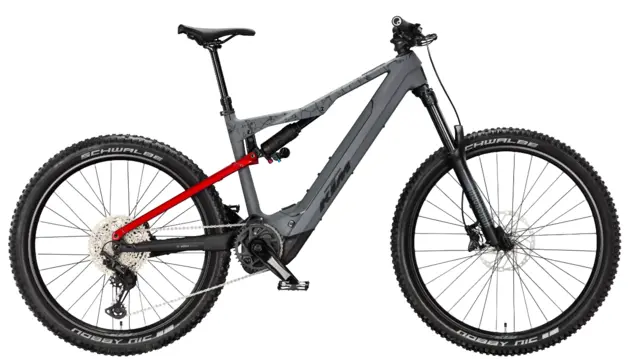

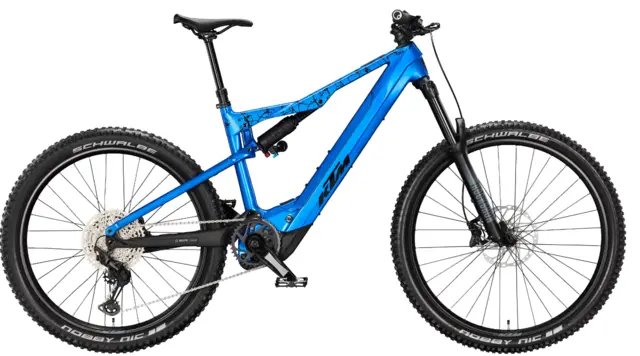

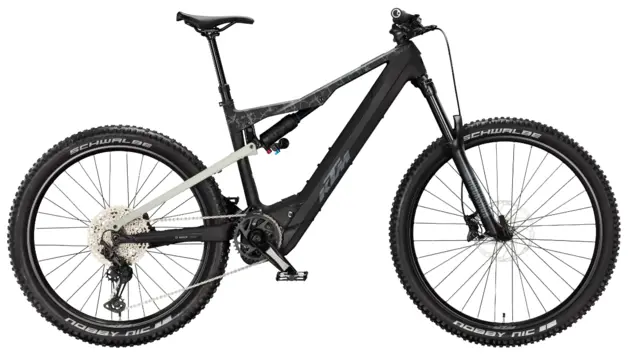

MACINA KAPOHO ELITE CX-R
UPHILL. DOWNHILL. WHY NOT BOTH? Few bikes embody limitless trail
adventures quite like the KAPOHO. For years, it has ranked among the most
popular full-suspension e-MTBs, impressing riders with a level of versatility
that is second to none. Whether tackling demanding climbs, technical descents,
or all-day rides, the KAPOHO feels at home everywhere. With 160 mm of travel,
it combines outstanding trail performance with exceptional long-distance
comfort, making it the perfect all-rounder for riders who refuse to be defined
by a single riding style. The proven Straight-Line-Link (SLL) suspension
concept delivers a sensitive response, maximum control, and a
confidence-inspiring ride feel, even on the most challenging trails. To achieve
its exceptional performance, the KAPOHO relies on KTM’s proven DiMMiX concept.
The 29-inch front wheel provides stability, precision, and confidence at speed,
while the 27.5-inch PLUS rear wheel delivers maximum traction and efficient
power transfer. Together, they create a setup that truly excels in demanding
terrain. Power comes from the new Bosch Performance Line CX-R drive unit.
Delivering up to 120 Nm of torque, 750 watts of peak power, and a s upport
factor of up to 600%, it provides all the assistance needed for steep climbs,
rapid acceleration, and demanding trail sections. At the same time, the 800 Wh
PowerTube battery offers the endurance to keep going when the ride turns into
an all-day adventure. For maximum everyday convenience, KTM continues to rely
on its proven Power Tube Top Loader (PTTL) concept. The battery can be removed
upwards from the downtube quickly, safely, and effortlessly.
Ramme Mac Kapoho PERFORMANCE CARBON 160|PT800 Bosch BDU38/M6270
Gaffel RockShox 35 Silver TK 29" 160mm 15x110
Shock Suntour TRI-AIR 3CR-Lockout 250x70
Motor Bosch PERFORMANCE CX-R BDU3863 (BOSCH PT-CXR8P4)
Display Bosch PURION 200 Display & Remote
Batteri Bosch PowerTUBE 800Wh horizontal - ABUS integrated lock IT1 (X-Plus
key)
Lader Bosch STANDARD Charger 4A
Bakgir Shimano DEORE XT M8100-12 SGS Shadow+
Girhendel Foran: Shimano MT500-L SP-Lever - Bak: Shimano DEORE M6210-12
Kranksett KTM E-TRAIL ISIS 160mm Q16
Kjede Shimano DEORE M6100-12
Dekk foran Schwalbe Nobby Nic Perf. Folding 65-622
Dekk bak Schwalbe Nobby Nic Perf. Folding 70-584
Holker Ergon GA20
Styre KTM COMP Trail35 rizer15 780mm
Stem KTM TEAM Trail35
Styrelager Acros AICR intern 1.1/8"-1.5" angle lim
Sete KTM TEAM ENDURO Steel Rails
Setepinne KTM Line II dropper 30.9 T:150
Pedaler MTB-Pedal alloy VPE-527 flat
Vekt 24.9
Tillatt totalvekt 135
